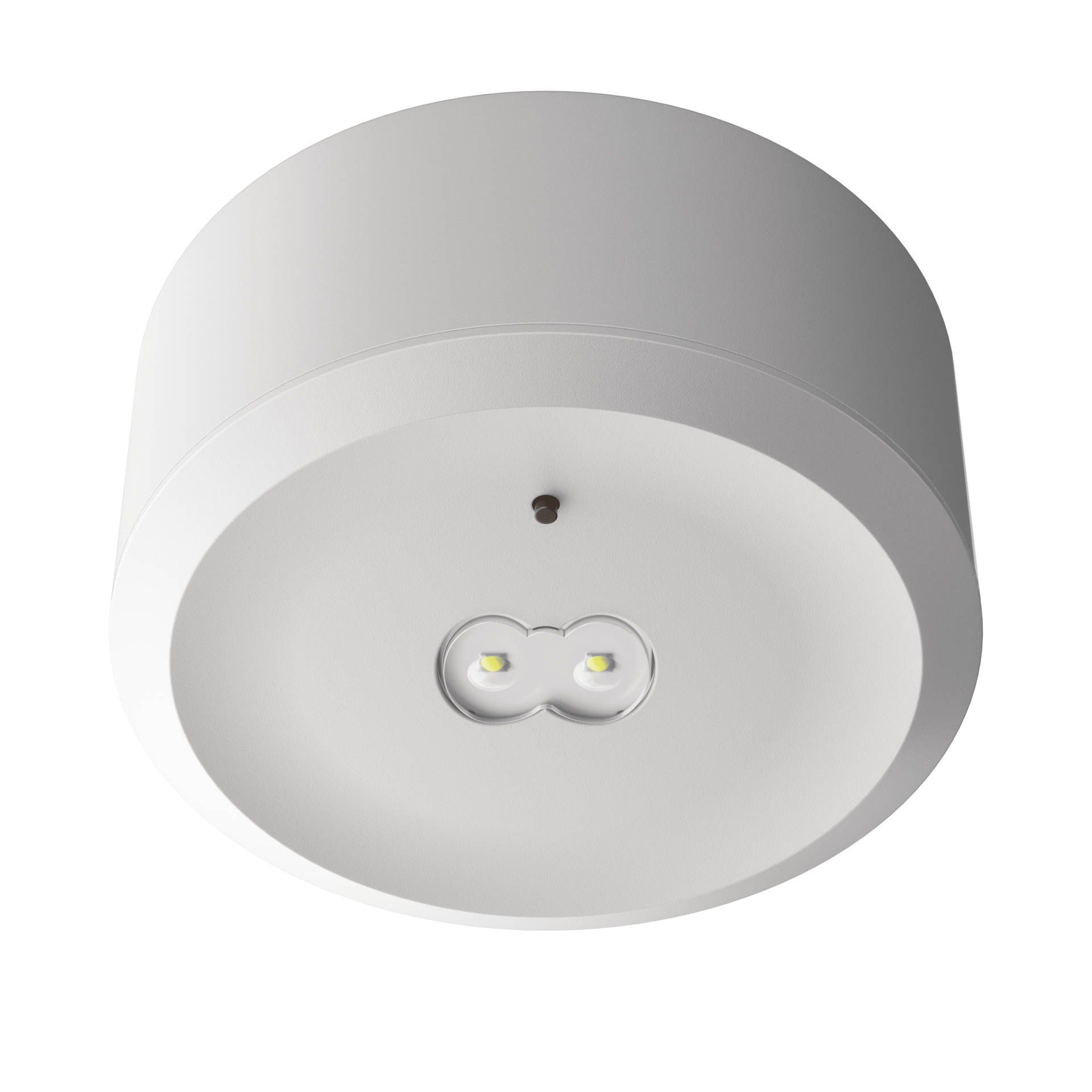

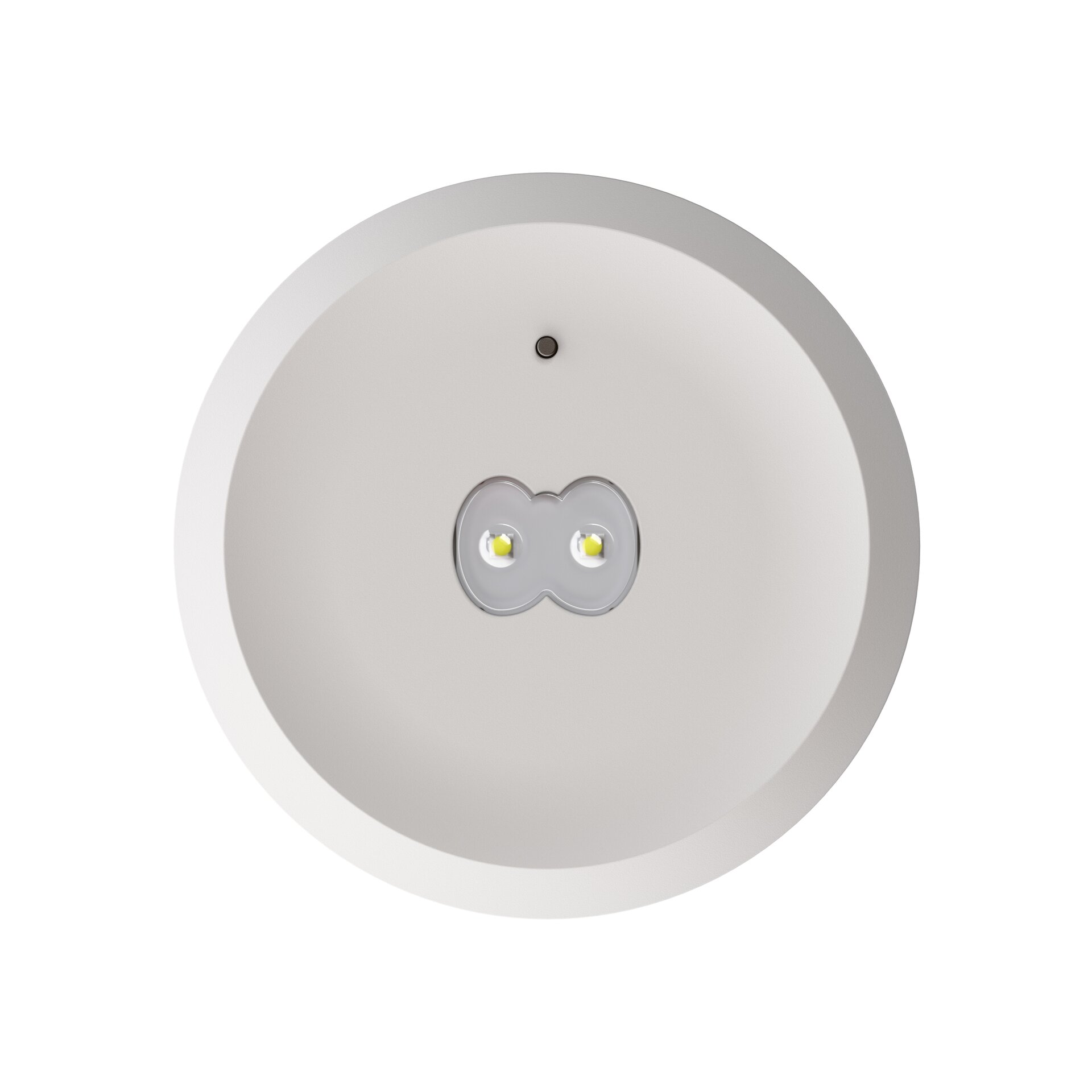

SECURA FLEX
SECURA FLEX is a modern, modular emergency downlight luminaire designed as a universal solution for various types of spaces – from offices and commercial areas to corridors, staircases, and technical or communication zones. Thanks to its 2-in-1 design, extensive optical and accessory configuration, SECURA FLEX enables the creation of a complete emergency lighting system based on a single, consistent luminaire model. This means not only simplifying the project but also ensuring visual uniformity of the entire emergency system – regardless of the room’s function.



Modular design – one housing, multiple optics and mounting options

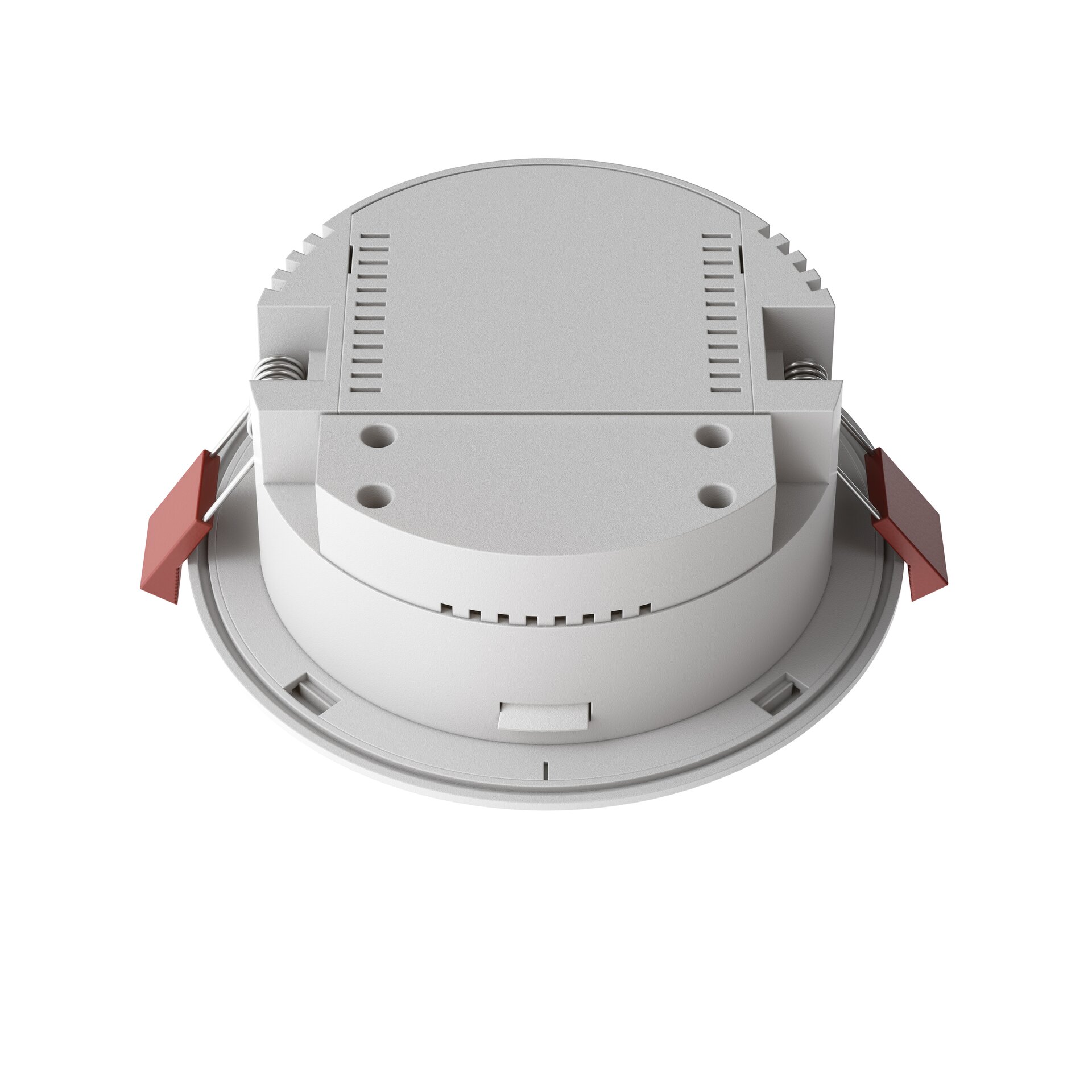

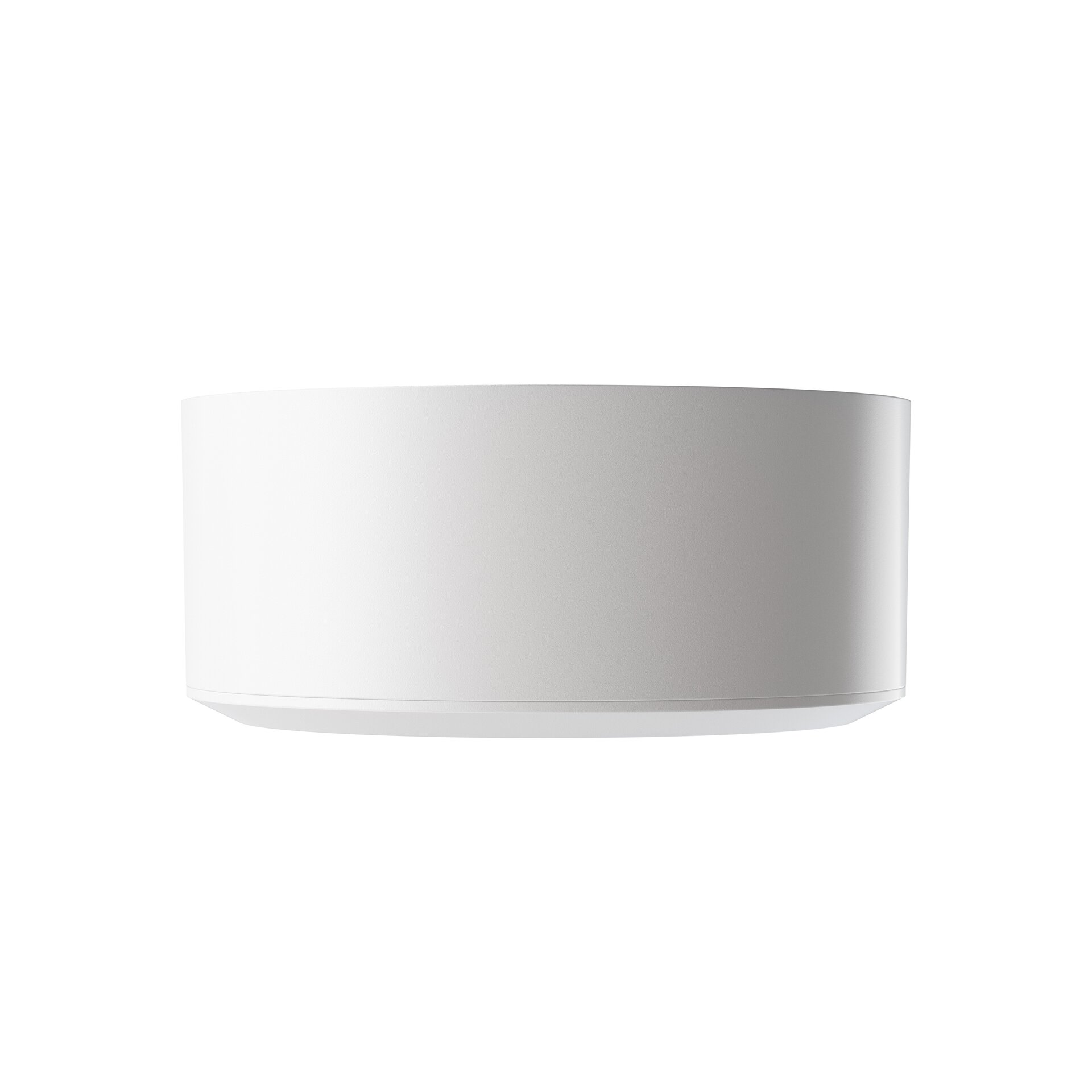

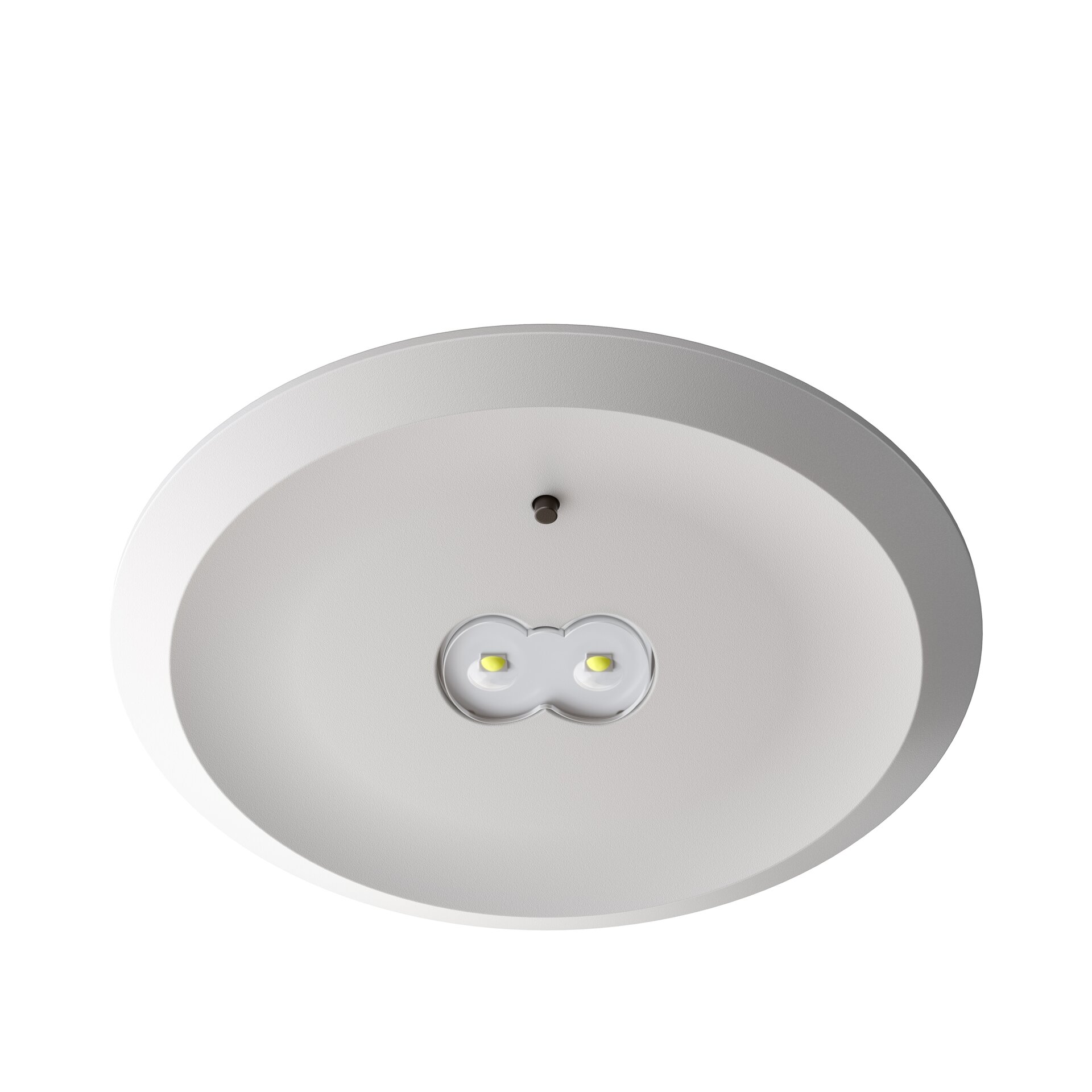

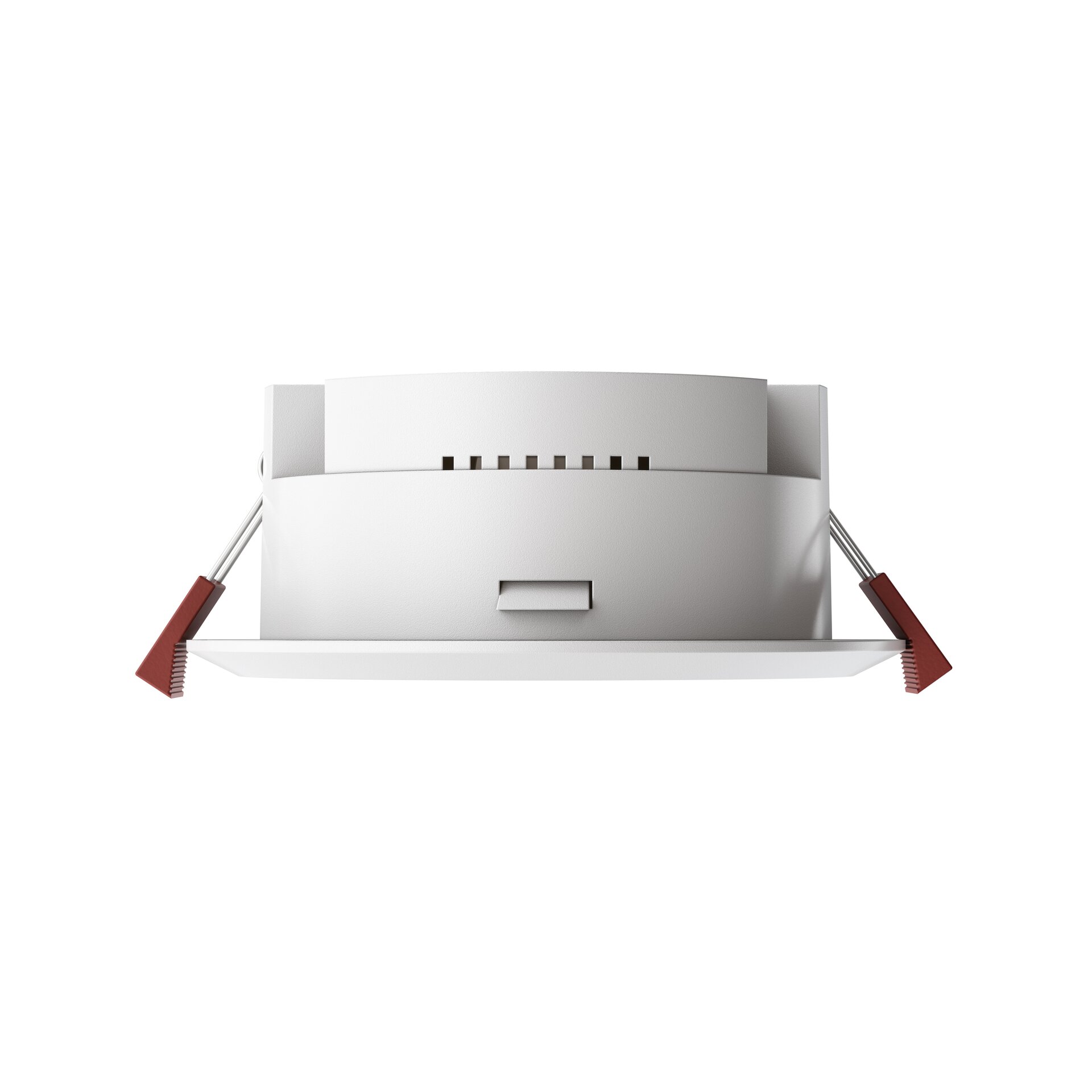

2-in-1 installation: surface-mounted or recessed in drywall – flexibility without changing the model

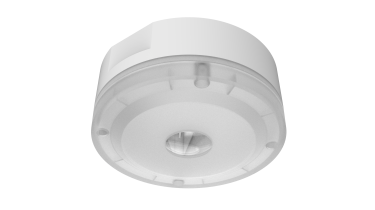

IP65-rated housing (accessory) – protection in high-humidity environments, e.g., restrooms, technical areas

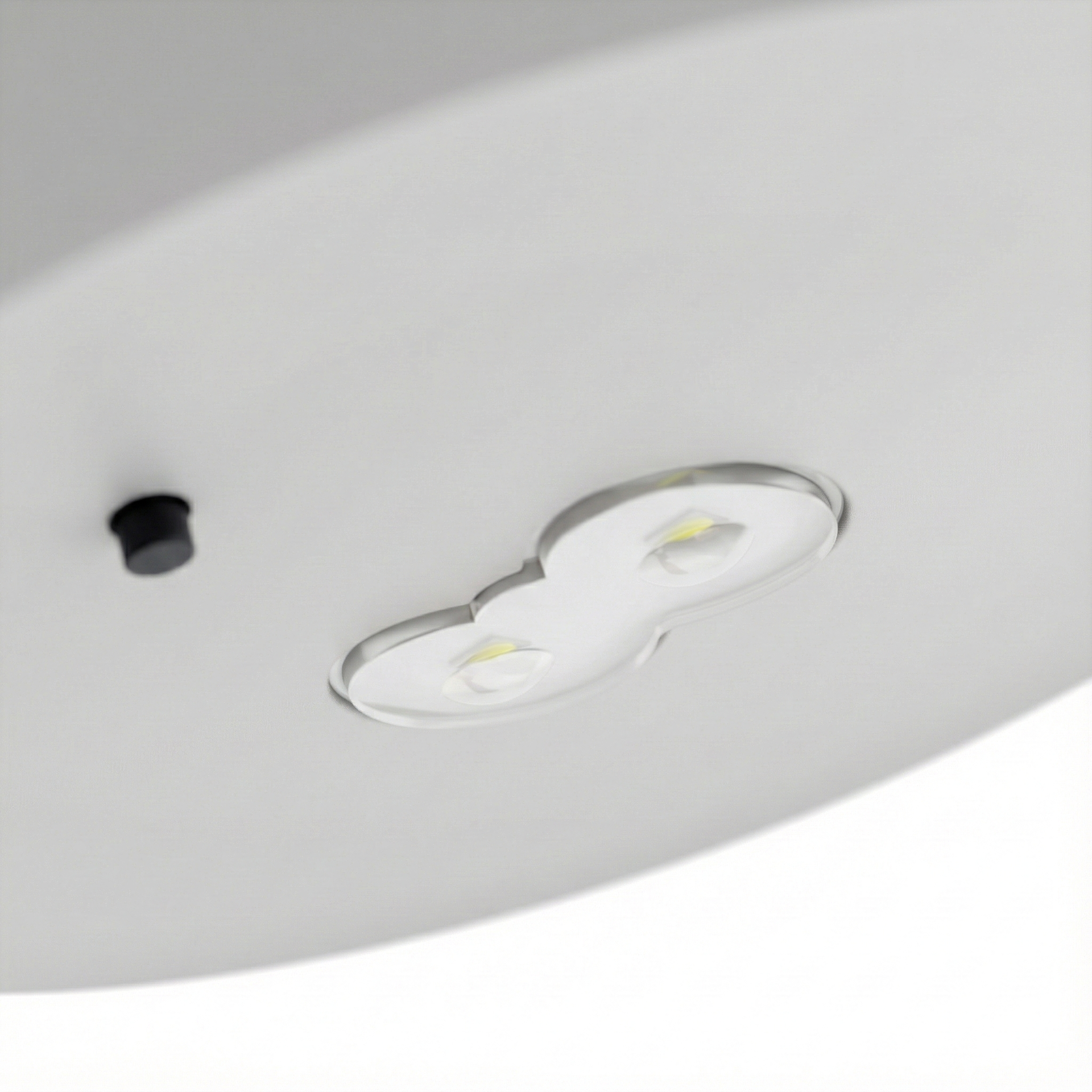

Interchangeable lenses: round (for open spaces), oval (for evacuation routes), spot (for fire points)
High light quality: Ra >70 / 5000 K
Possibility of achieving a higher IP with the use of an accessory

Application

boutiques, car showrooms, galleries, museums, offices, open-space areas, pathways, schools, shopping centers

Available on request

IP65 housing

Variable color temperature

5000 [K]

Mechanical data

Mounting
surface mounted, in the ceiling, with mounting brackets (included)
Body colour
white
Body
plastic

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Output current [mA]
500
Type of equipment
ED, EM 3h

Optical data

Way of lighting
direct
Type of optics
open spaces
Colour temperature [K]
5000
CRI/Ra
70
ULOR / DLOR
0/100
Photobiological risk group
RG1
Number of LEDs
2

Emergency data

Emergency kit
yes
Emergency operating time
3h

Dimensions

Dimensions [mm] LxD1xD2 Mounting dimensions [mm] L Pallet quantity Net weight [kg]
142x62x56 140 920 0.462
X

Available variants

Code
Type of equipment
ED
EM 3h
Clear Filters
Compare Code Type of equipment Type of optics Colour temperature [K] CRI/Ra Luminaire power EM [W] Light output in emergency mode [lm] Emergency operating time
110171.5L01113.0 ED, EM 3h open spaces 5000 70 2,8 473 3h
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Data sheet - accessories
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150151.01588
 white

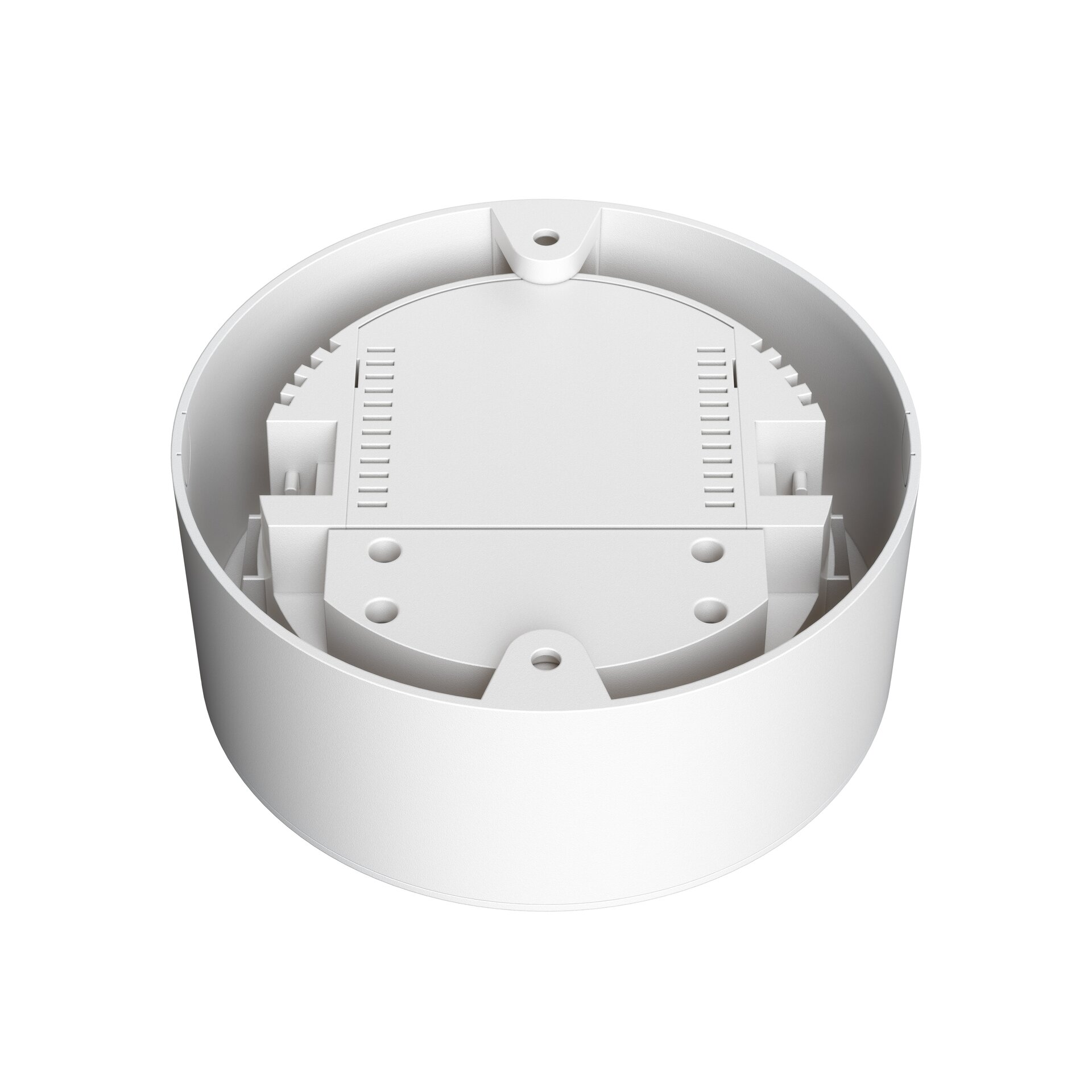

SECURA FLEX IP65 housing white
