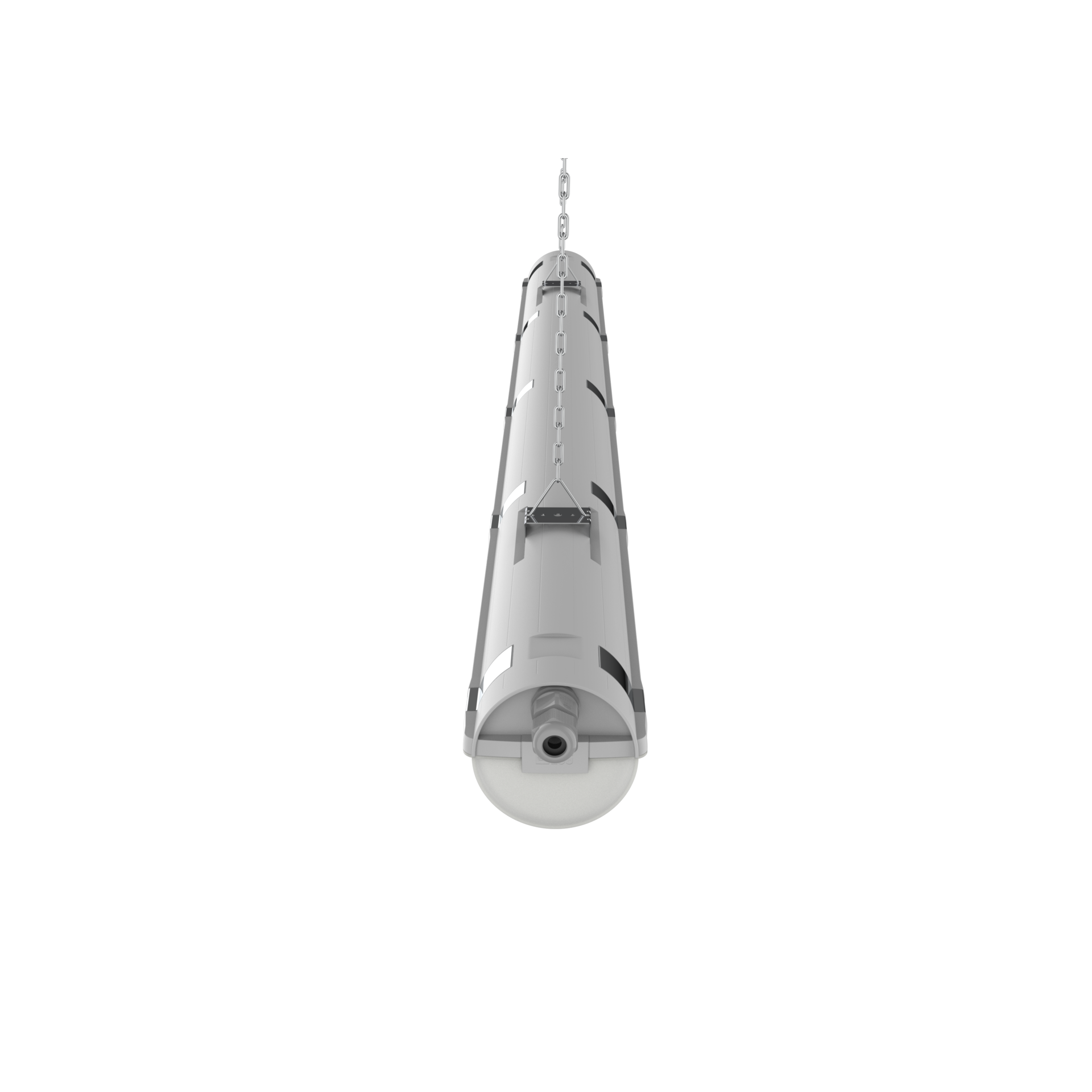

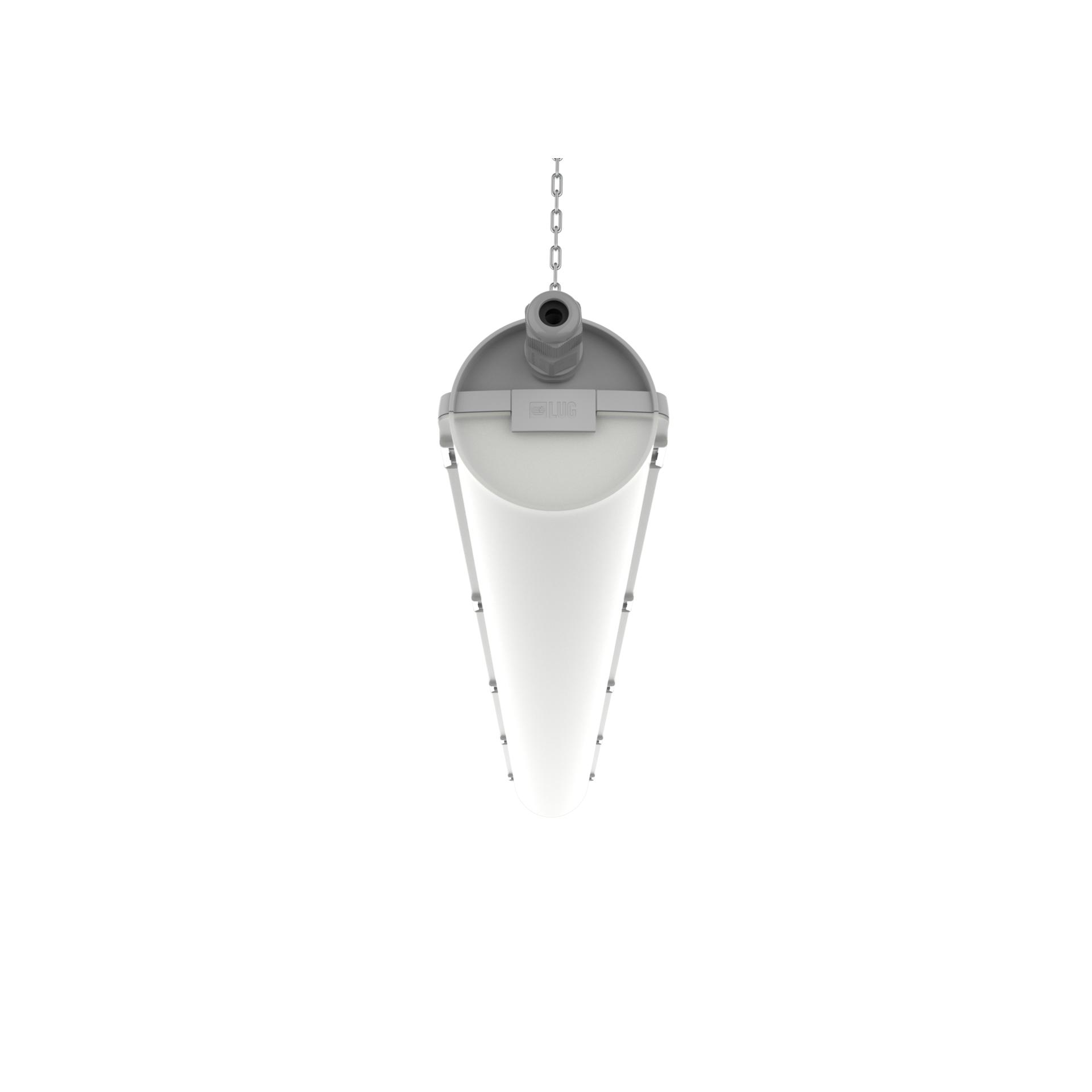

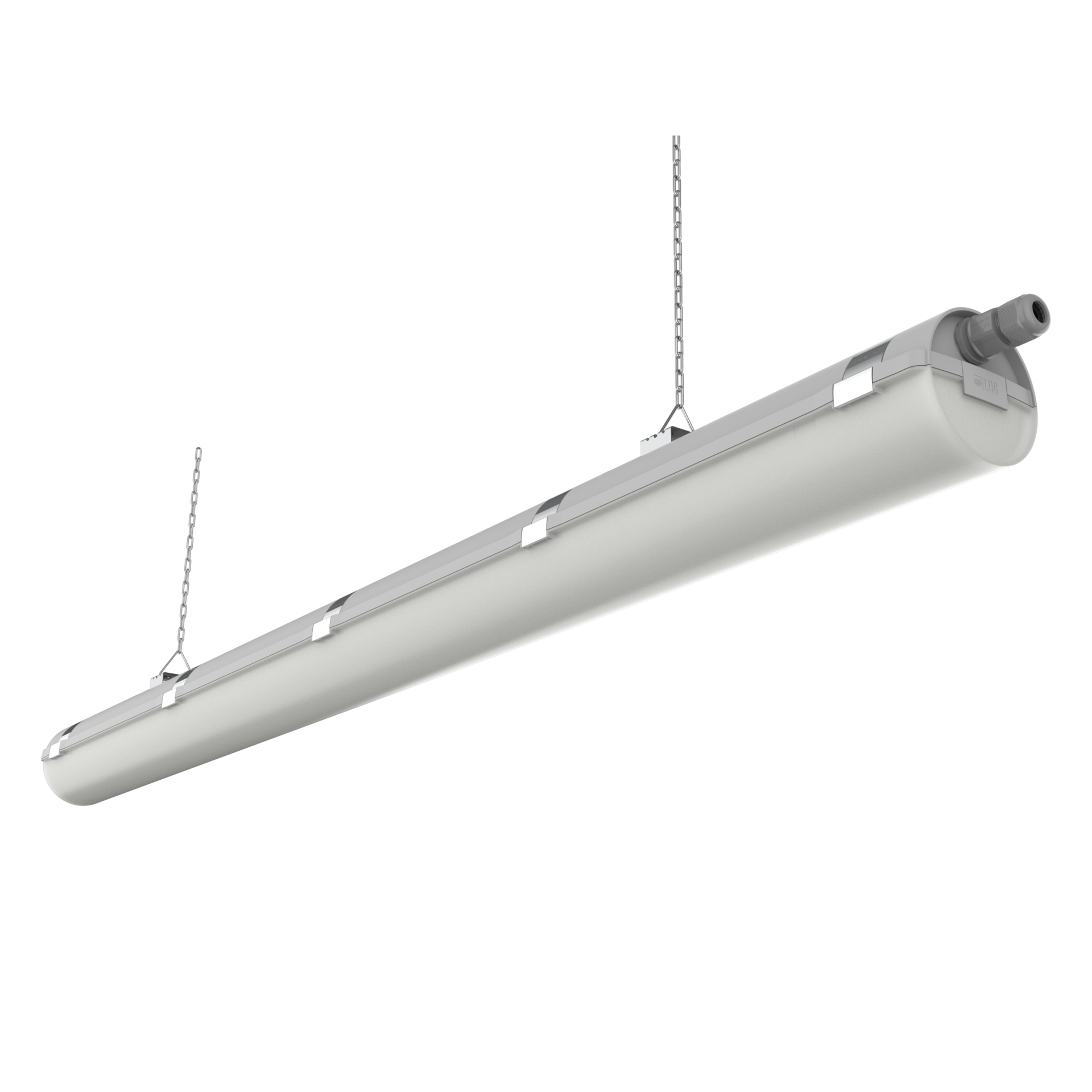

ATLANTYK 2.0 BASIC LED
Hermetic LED luminaire, water-jet proof, intended for mounting inside industrial or architectural objects.



High efficacy to 182 lm/W
Maintenance-free operation
Perfect combination of aesthetics and ergonomics
The ideal luminaire for tough working conditions
Possible illuminance control
Available in a variety of options
Fast and easy mounting
Modern design
Reliability
Passive cooling system
Simple one person mounting

Application

assembly halls, electricity plants, mills, parking areas, production halls, warehouses, warehouses, wood and paper industry, workshops

Available on request

available with connection to a central battery power supply, radar motion detector, twilight sensor

Luminous flux range

2900 - 16500 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

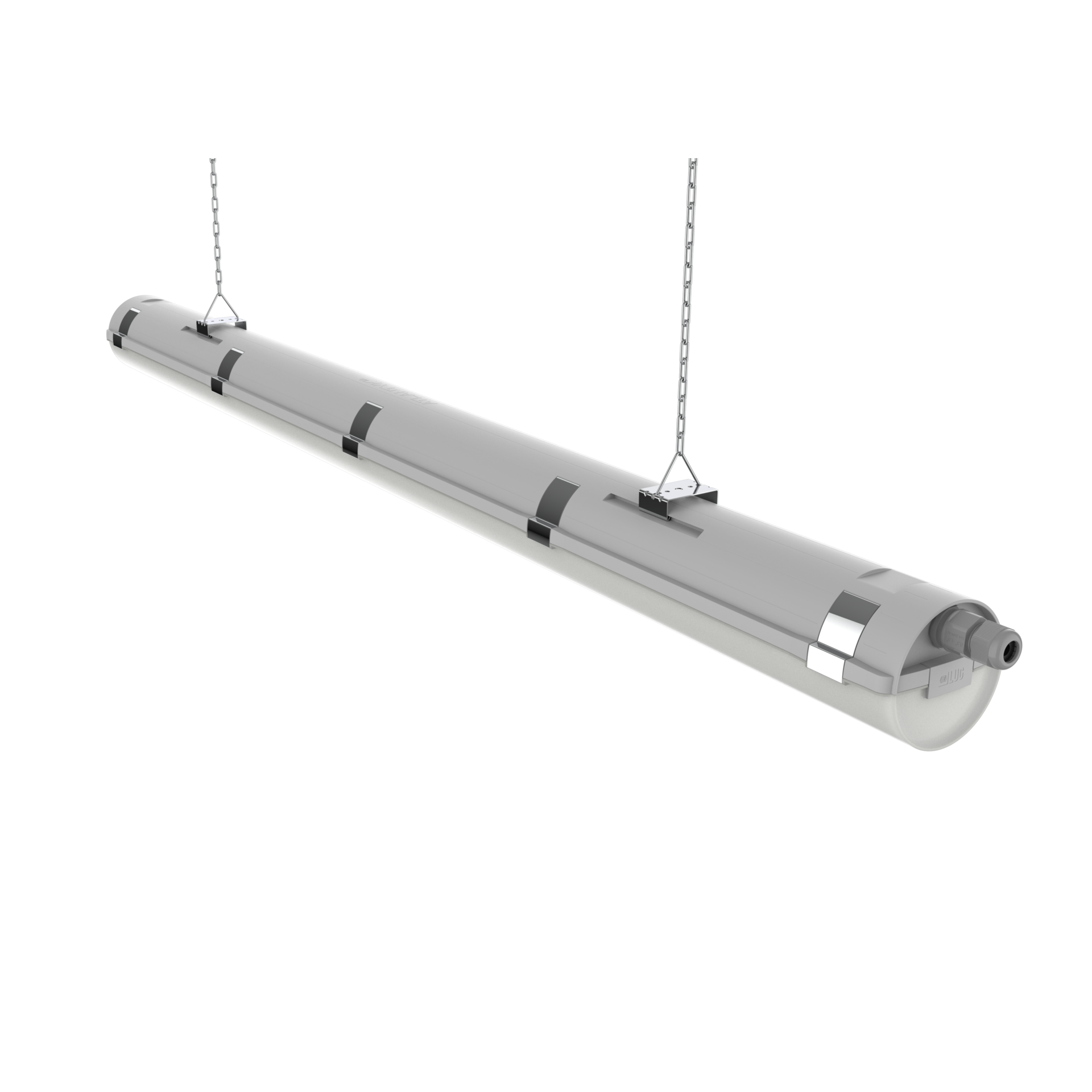

suspended, on chains, on wire suspension (on request), directly on the ceiling, with mounting brackets (included), on the wall vertically (connector downwards) with mounting brackets (included), on the wall horizontally with mounting brackets (on request)
Body colour
light gray
Operating temperature range [°C]
-20 ... +35, -25 ... +30, -25 ... +35, -30 ... +50, 0 ... +35
RAL
7035
Body
polycarbonate
Type
High Lumen Output, low assembly
Luminaire with limited surface temperature
yes

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
18 - 99
Output current [mA]
250, 320, 350, 390
Type of equipment
DALI, DALI + through wiring (TW) 5x1,5 mm², DALI dip-switch*, STANDARD + through wiring (TW) 5x1,5 mm², STANDARD, ED dip-switch*
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
10 - 27
Maximum number of luminaires in the circuit with a 16A fuse (B)
17 - 56
Maximum number of luminaires in the circuit with a 25A fuse (B)
89

Optical data

Light distribution
omnidirectional
Way of lighting
direct
Type of optics
opal diffuser
Diffuser
polycarbonate
Colour temperature [K]
4000
CRI/Ra
≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2900 - 16500
Efficacy [lm/W]
132 - 182
Photobiological risk group
RG0
SVM
≤0,4
PstLM
≤1
Number of LEDs
228

General data

Additional information
CRI/Ra ≥80, EASY CONNECT
Other remarks
in order to apply the luminaire in an aggressive environment a consultation with the LUG Technical Preparation of Production Branch is required
Lifetime L80B10
100 000 h; 85 000 h - High Efficacy ; 50 000h - High Lumen Output
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] D Pallet quantity Net weight [kg]
1245x100x90 766 105 1.7
1245x100x90 766 105 1.8
1245x100x90 766 105 2.4
X

Available variants

Code
Use
Indoor
Outdoor
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
DALI + through wiring (TW) 5x1,5 mm²
DALI dip-switch*
ED dip-switch*
STANDARD
STANDARD + through wiring (TW) 5x1,5 mm²
Emergency operating time
-
3h
Type
High Lumen Output
niski montaż
IK
IK08
IK08/IK10*
Clear Filters
Compare Code Type Type of equipment IK Body colour Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Operating temperature range [°C] Emergency operating time
090380.3L02.011.938 DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 31 4700 152 -25 ... +30 -
090380.3L04.011.938 DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 40 6250 156 -25 ... +30 -
090380.3L06.011.938 DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 48 7450 155 -25 ... +30 -
090380.3L10.011 low assembly DALI IK08 light gray 18 2900 161 -25 ... +35 -
090380.3L10.011.938 low assembly DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 18 2900 161 -25 ... +30 -
090380.3L12.011 High Lumen Output DALI IK08 light gray 54 9500 176 -20 ... +35 -
090380.3L12.011.938 High Lumen Output DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 54 9500 176 -20 ... +35 -
090380.3L13.011 High Lumen Output DALI IK08 light gray 65 11500 177 -20 ... +35 -
090380.3L13.011.938 High Lumen Output DALI + through wiring (TW) 5x1,5 mm² IK08 light gray 65 11500 177 -20 ... +35 -
090380.3L14.011 High Lumen Output DALI IK08 light gray 99 16500 167 -20 ... +35 -
Compare selected
Shown 10 / 26
Show all

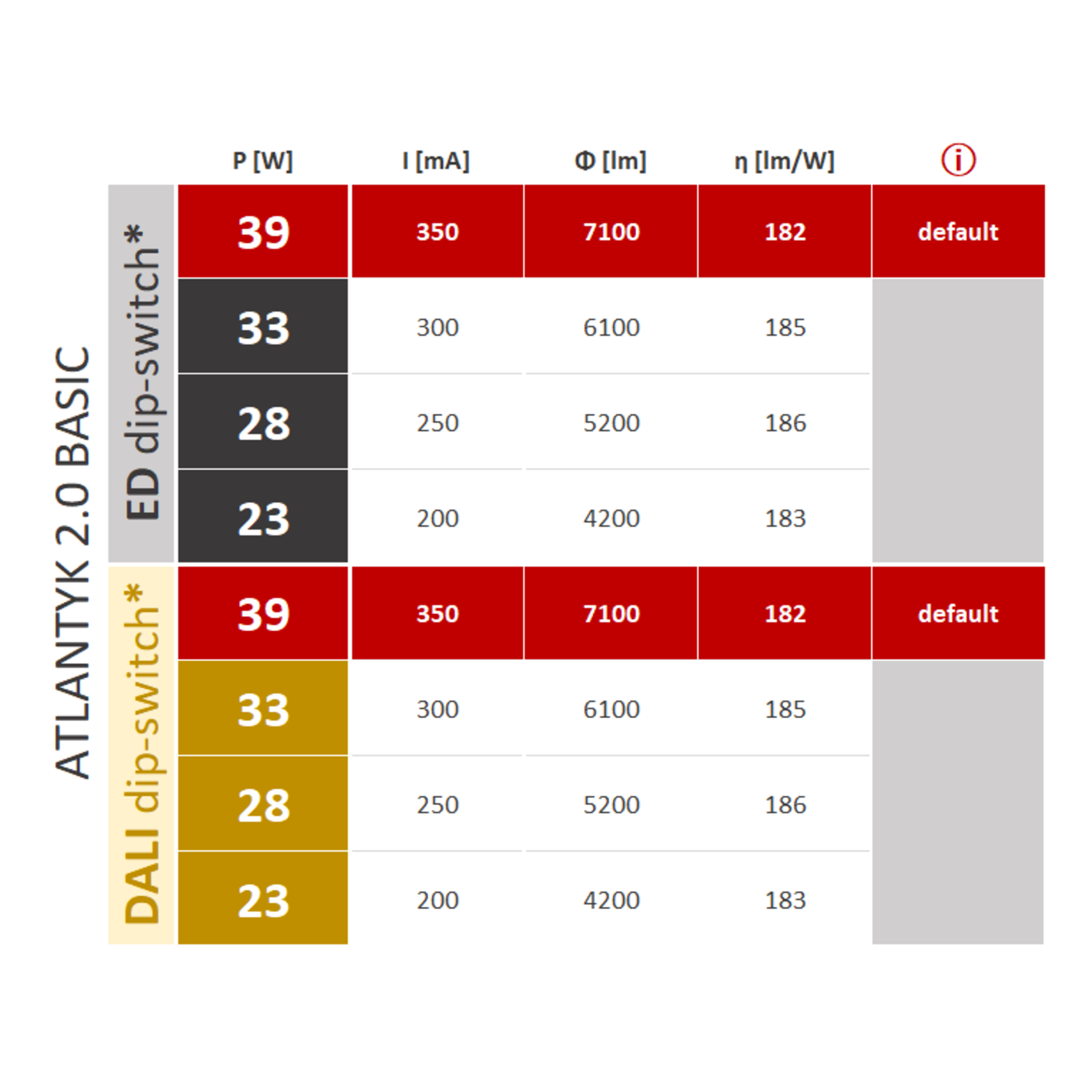

* See installation instructions/diagram for details.
The luminaires are not intended for mounting in places exposed to atmospheric conditions, in car washes, in rooms where washing with pressure washers is used, in livestock rooms, in aggressive environments, etc.
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
