LIORA
C version

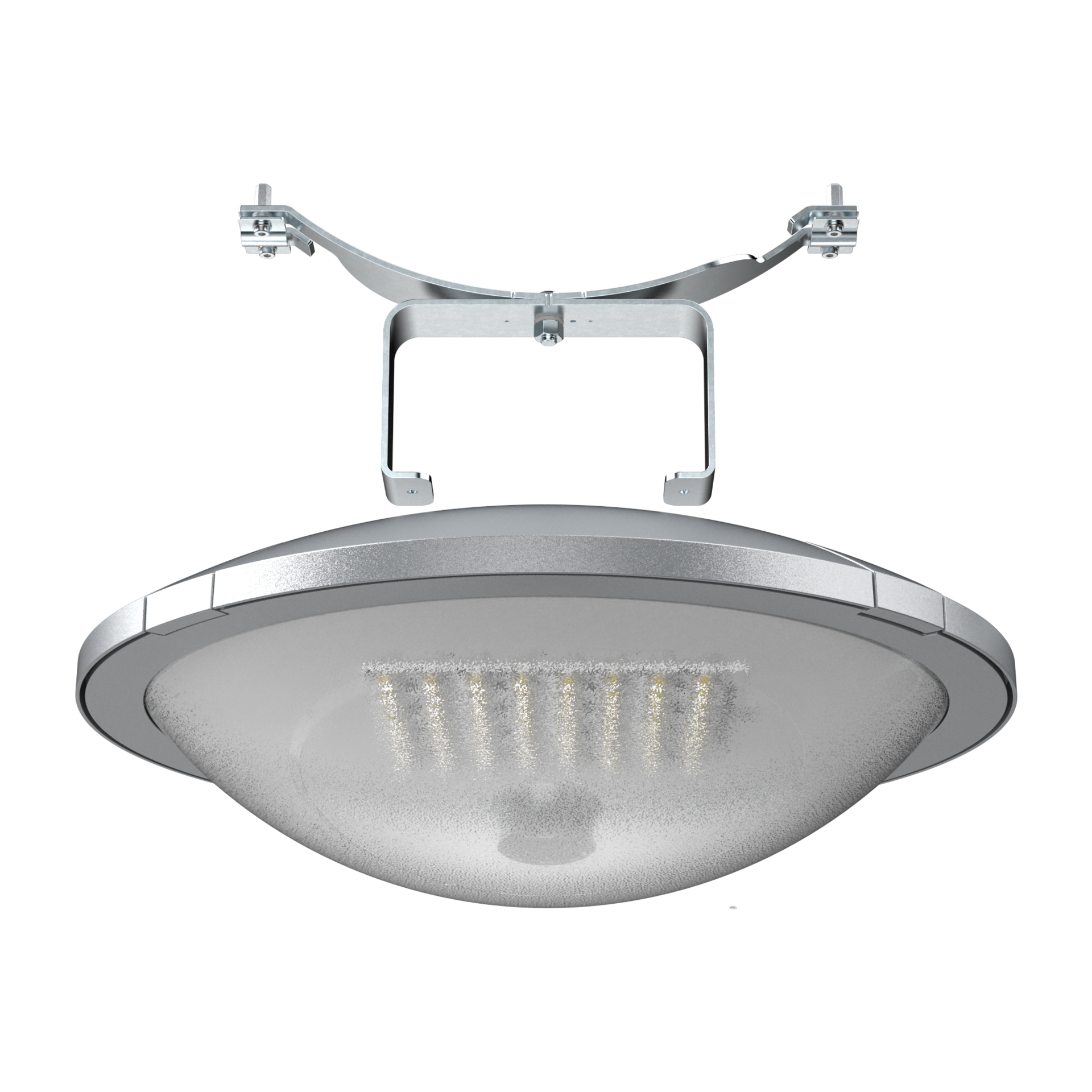

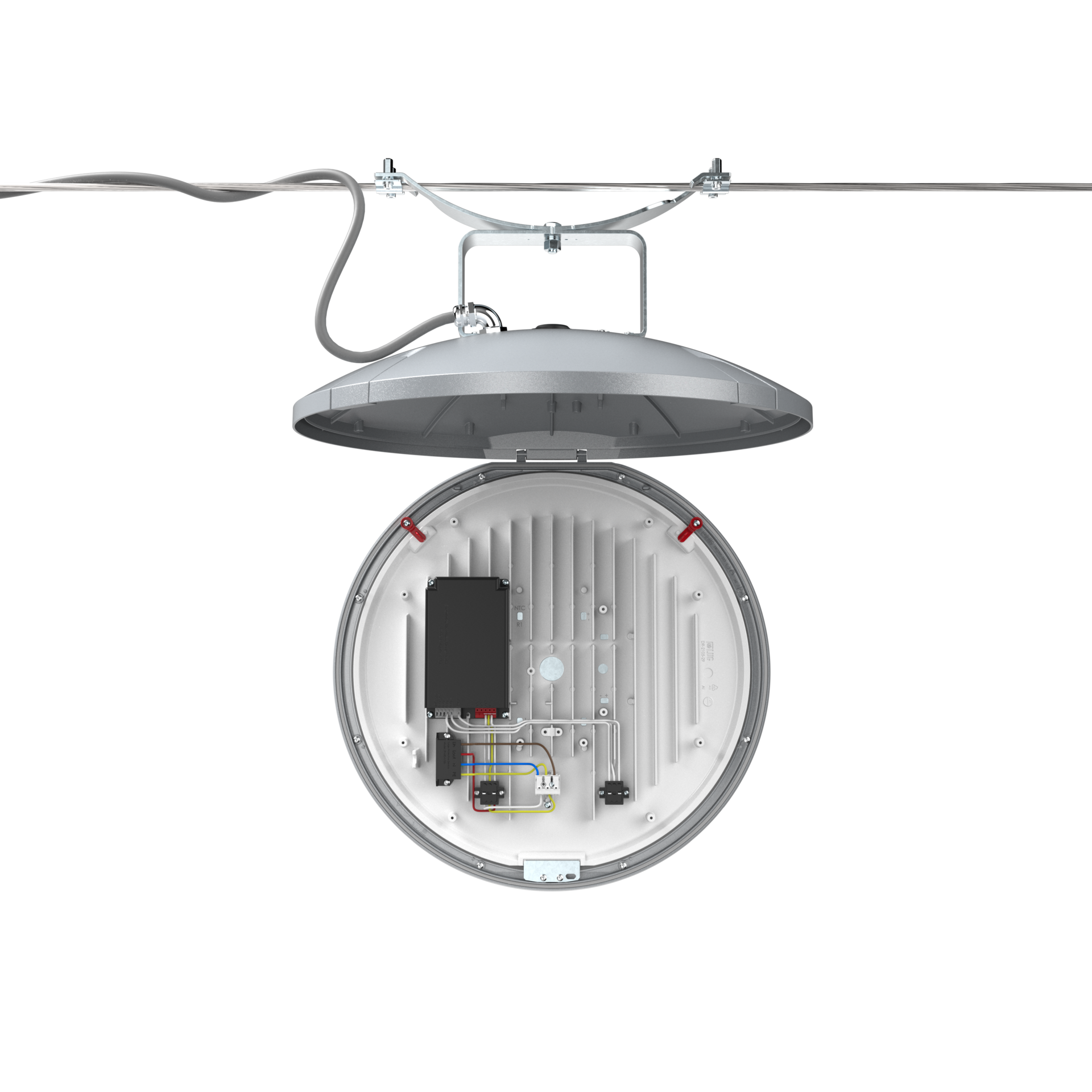

Modular street luminaire in two body sizes with increased serviceability, enabling tool-free replacement of the light module and power supply. Designed for professional lighting of various urban application spaces.



Possible illuminance control
Modern design
Reliability
High efficacy to 176 lm/W

Application

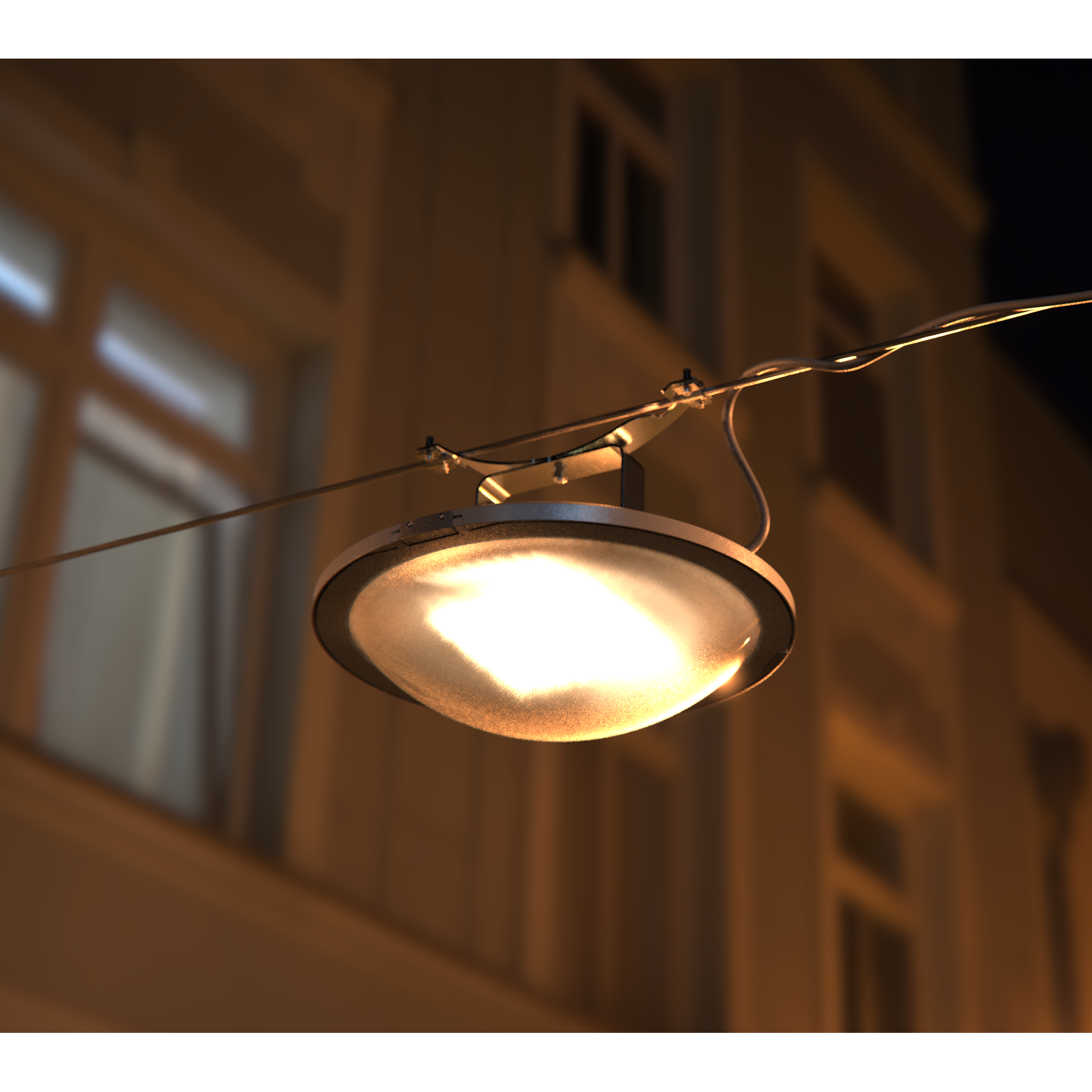

Railway stations, area lighting, avenues, local roads, parking areas, playgrounds, promenade, public spaces, residential area roads, roads, town roads

Available on request

10kV surge protection, CLO, D4i, DALI, DIM 1..10V, NTC, ZHAGA connector

Luminous flux range

1300 - 18150 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

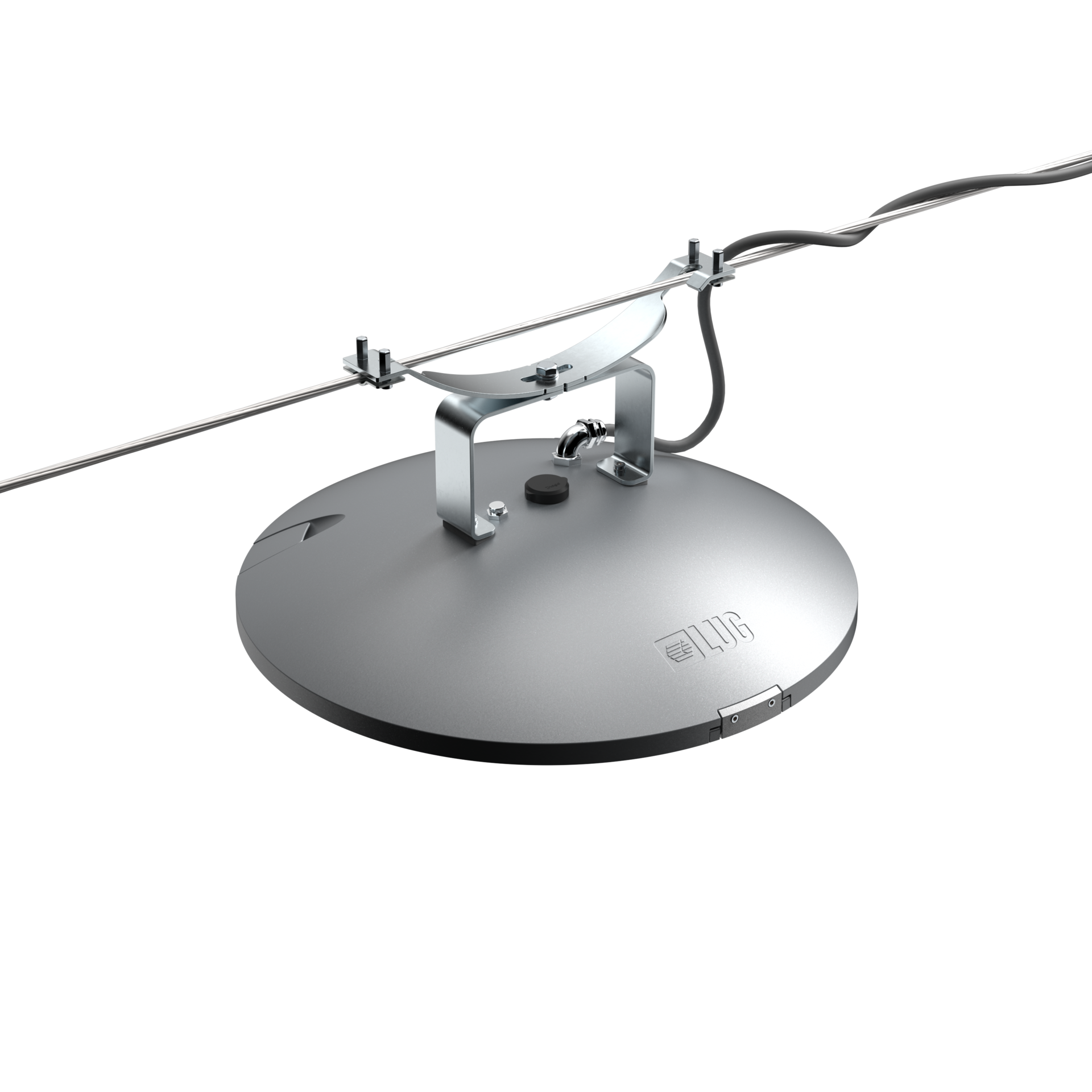

for hanging on a cable, on outriggers ø60mm
Body colour
gray
Detail
white
Operating temperature range [°C]
-40 ... +55
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.078 m²
Corrosion class
C3

Electrical data

Electrical connection
max 3x1,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8 - 114
Output current [mA]
150, 450, 600
Power supply power factor [λ]
> 98
Type of equipment
ED
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
6 - 18
Maximum number of luminaires in the circuit with a 16A fuse (B)
10 - 30
Maximum number of luminaires in the circuit with a 25A fuse (B)
16 - 19

Optical data

Light distribution
symmetric
Way of lighting
direct
Reflector
white
Diffuser
polycarbonate
Colour temperature [K]
4000
CRI/Ra
70
MacAdam's steps
3
Lumen luminaire [lm]
1300 - 18150
Efficacy [lm/W]
159 - 176
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
16, 64

General data

Other remarks
the pole and boom are not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Pallet quantity Quantity in package Net weight [kg]
550x212 18 1 9.3
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Protection Class Type of optics Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range [°C]
131042.5L051.010 I ED 8 1300 163 4000 70 -40 ... +55
131042.5L301.010 I ED 114 18150 159 4000 70 -40 ... +55
131042.5L351.010 I ED 47 8250 176 4000 70 -40 ... +55
Compare selected
Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
Please note that the standard luminaire is not intended for use in an environment with an increased corrosivity category. The use of the luminaire for work in an environment for which additional corrosion protection is necessary requires the use of an index with the extension .985 (on request).
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
